Multiphase Flow Meter

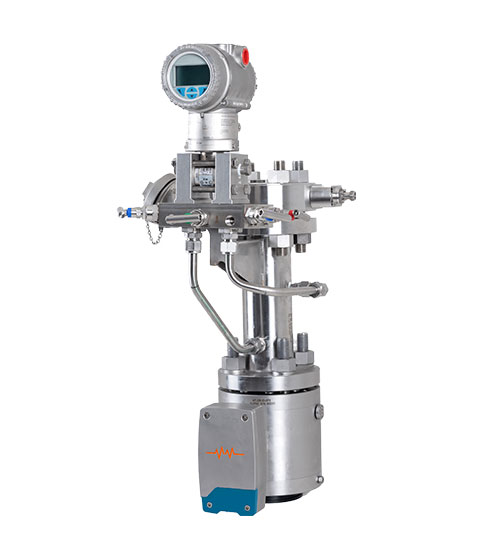

Introducing AquaField™ GOLD, a compact, lightweight multiphase flow meter designed for monitoring production in wells. It operates without requiring PVT input once in operation - only density input of oil and gas during start up.
The flow meter does not use a nuclear source, thereby eliminating HSE risk related to handling and storage of these radioactive isotopes, in addition to the negative environmental factor. Configurable for upward flow, it provides accurate measurements independent of all flow regimes, such as slug flow, emulsions, and other types of flow conditions due to its unique technology. Salinity measurement is also included in the flow meter to provide accurate measurement of changes in the water properties in cases such as identifying water breakthrough from e.g., either water injection wells or cross flow from nearby production wells.
AquaField™ GOLD is advantageous for various applications, both in conventional and unconventional fields, flowback operations, drill outs, onshore and offshore applications, including subsea. This robust, cost-efficient tool utilizes patented detection principles to measure water content and conductivity, making it invaluable for production monitoring and reservoir optimization.
Key Specifications
Real-Time Measurements
- Oil-Water-Gas Flowrates
- Water Cut
- Oil Fraction
- Water Fraction
- Gas Fraction
- Conductivity/Salinity
Applications
- Reservoir Management
- Production Optimization
- Well Production Testing
- Well Performance Monitoring
- Water Breakthrough Detection
- Flowback
- Drill outs
Features and Benefits
- No PVT Input Required (Note 1)
- Self-Calibrating
- Low OPEX
- Low CAPEX
- Non-Intrusive
- No Nuclear Source
-
Real-Time Measurement
Note 1: Only density input of oil and gas during start up
Installation

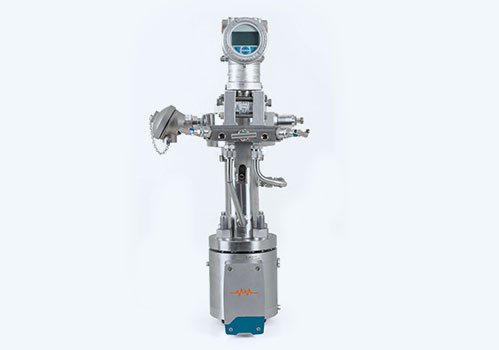

AquaField™ Gold can be configured for upward flow, delivering accurate and repeatable measurements regardless of the flow regime. The meter’s size and operating envelope are determined by the minimum acceptable flow velocity. AquaField™ Gold is designed for vertical installation, ensuring optimal performance in various flow conditions.
The conductivity probe is integrated into the flow meter as a standard component, providing additional critical data for the user.
The Value of AquaField™ Gold for Your Business
The Only Self-Calibrating Multiphase Flow Meter - No Nuclear Source
Enhanced Recovery
Accurately measures flow rates and provides crucial information to reservoir management teams to increase oil recovery.
Real-Time Monitoring
Online, continuous, and real-time readings in continuous production or flowback flows.
Remote Well Management
Remotely monitor & analyze production data with AquaField™ through standard communication protocols, including wireless solutions.
CO2 Emission Reduction
Remove the need for traditional and periodic individual testing of wells using test separator and enable continuous production optimization.
Production Optimization
Provides accurate measurements of production data which enables operators to make informed decisions and maximize overall production efficiency.
Intuitive Dashboard
Provides operators with a comprehensive and user-friendly interface, allowing for easy visualization and analysis of data.
| Product Feature | MPFMs | AquaField™ Gold |
|---|---|---|
| Direct Water Measurement | ||
| Conductivity/Salinity Measurement | ||
| Robustness to PVT Changes | ||
| Low CAPEX Cost | ||
| Low OPEX Cost | ||
| Self-Calibrating & No Nuclear Source |
